TEEWING Flux One Cosmic Black – bicikl
At Teewing, our passion for mountain biking fuels innovation. With over 15 years of research and development experience serving high-end bicycle brands, our team combines expert knowledge with a deep love for the sport. In 2023, we embarked on an ambitious journey to design our own line of electric mountain bikes, leveraging strategic partnerships with one of the world’s top ten manufacturing factories to secure excellence in both production and supply chain management.
We believe electrification is the future of mountain biking, delivering enhanced performance, thrilling experiences, and unrivaled trail fun. By combining state-of-the-art technology with our passion, every Teewing electric mountain bike is engineered with innovative features that boost your ride.

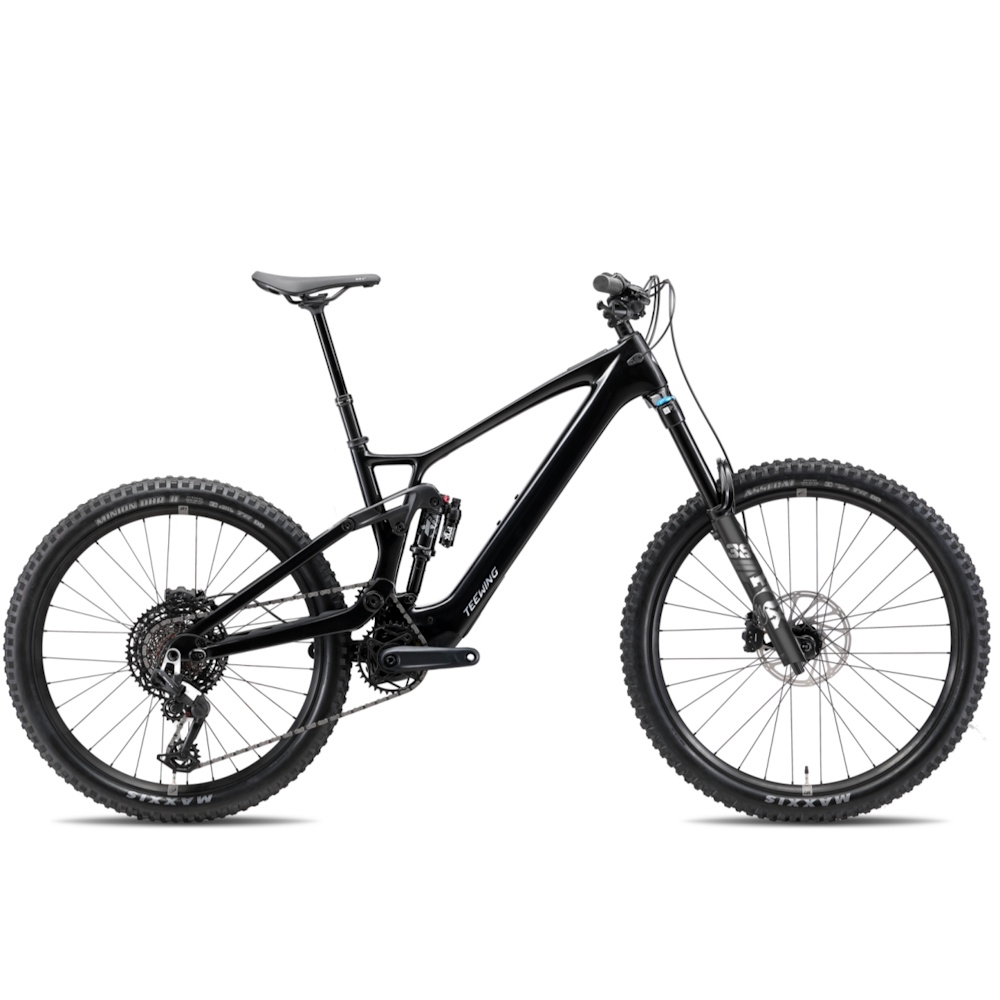

TEEWING Flux One Cosmic Black – bicikl
Detailed product description
The Flux One A is a powerful e-bike designed for riders who want to go faster, farther and with confidence on the most demanding terrain. The high-torque mid-drive motor offers smooth, instant engagement and effective support for steep climbs and technical sections.
Key parameters
- Engine type
- DJI Avinox M1
- Torque
- 120 Nm (BOOST)
- Battery capacity
- 800Wh
- Sorting
- SRAM Eagle Transmission T-Type
Specifications
Frame
| Frame | Teewing Flux One carbon frame |
|---|---|
| Wheel size | Mullet (Front 29″ / Rear 27.5″) |
| Stroke | 180 / 170–178 mm |
Drive
| Engine | DJI Avinox M1 Drive Unit (105 Nm / 120 Nm BOOST) |
|---|---|
| Display | Avinox 2″ OLED touch screen |
| Battery | Integrated Avinox 800 Wh |
| Drivers | Avinox wireless – left and right |
| Charger | Avinox Fast Charger 12 A / 508 W |
Suspension
| Fork | FOX 38 Float Performance 29″ (2027, 180 mm, Grip, 3-Pos) |
|---|---|
| Rear shock absorber | FOX Performance Float X2 (2pos-Lever, LSR, 205x65mm) |
Transfers
| Derailleur | SRAM GX Eagle Transmission (T-Type), 12-speed |
|---|---|
| Sorting | SRAM GX Eagle T-Type (Single Click) |
| Cartridge | SRAM XS-1270 (T-Type), 10-52 teeth |
| Chain | SRAM GX Eagle T-Type, 124 links |
| Cranks | Teewing SL Crank, 155 mm |
| Converter | SRAM Eagle Transmission E-MTB (BCD 104, 36 teeth) |
Brakes
| Type | SRAM Maven Base hydraulic four-piston |
|---|---|
| Discs | SRAM Centerline, 6 holes, 200 mm |
Wheels
| Mark | Formula M7 |
|---|---|
| Material | Aluminum |
| Diameter | Front 29″ / Rear 27.5″ |
| Inner rim width | 30mm |
| Number of holes | 32 – tubeless ready |
| Wires | Sapim E-Light J-bend |
Hubs
| Front | Alu 15×110 mm, thru axle, 32 holes / 6-bolt |
|---|---|
| Rear | Alu 148×12 mm, thru axle, 32 holes / 6-bolt |
Tires
| Front | Maxxis Assegai 29×2.5″, 3C MaxxGrip, DoubleDown |
|---|---|
| Rear | Maxxis Minion DHR II 27.5×2.5″, 3C MaxxTerra, DoubleDown |
Cockpit
| Handlebars | Teewing Enduro Alloy, 780mm width, 35mm rise, 8° sweep angle, 8° rise |
|---|---|
| Grips | VELO Enduro Grips |
| Stem | Teewing Enduro Alloy 6061, length 40 mm, diameter 35 mm |
Saddle and seatpost
| Seat | Selle Royal SRX Plus |
|---|---|
| Seatpost | EXA 31.6mm S/M: 150mm travel L: 170mm travel XL: 190mm travel |
Accessories
| User manual Torque wrench (3-10 Nm, 2/3/4/5/6 mm Allen, Torx T25) Shock absorber pump |
*Note – specifications apply to all sizes unless stated separately
