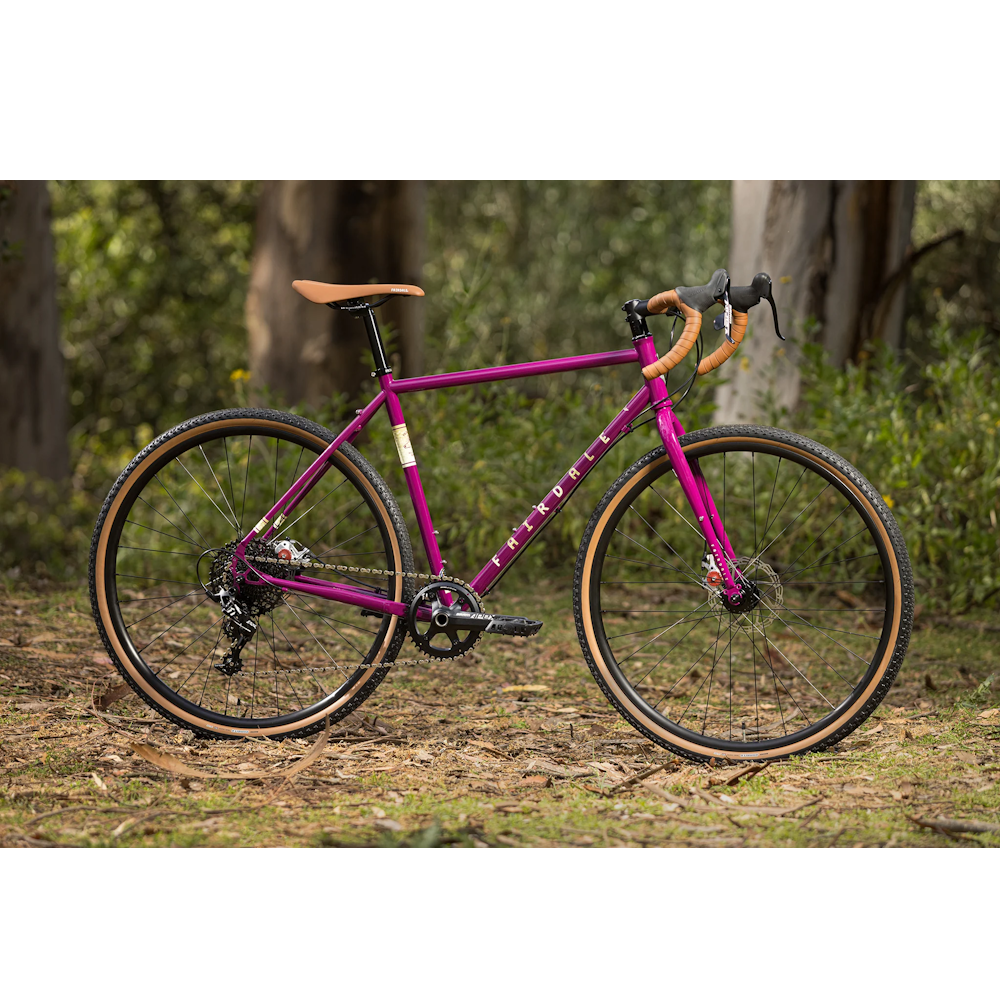

FAIRDALE Weekender Nomad Gloss Berry – bicikl
The Nomad version of the Weekender is made to travel. While it can easily handle being a weekday commuter on rough city roads, it really shines when you take it for a long haul.
The Nomad’s 100% 4130 chromoly frame and fork will welcome virtually anything that you can throw at it. This is our top of the line Weekender, and it comes equipped with an amazing parts build, like a SRtaAM Apex 1x derailleur and shifter, Avid disc brakes, SRAM Apex 1 cranks, Maxxis semi-knobby tires, and 700c wheels* for M-XL sizes.
*Please note that the X-Small and Small Weekenders use 27.5 x 1.65″ Maxxis blackwall tires and these frame sizes are not compatible with 700c wheels.
Sizing
X-Small: 4’11” – 5’4″ height
Small: 5’2″ – 5’7″ height
Medium: 5’7″ – 5’10” height
Large: 5’9″ – 6’1″ height
X-Large: 6’1″+ height
Sizing is approximate. Please consult with your local bike shop to assist with fit.
FAIRDALE Weekender Nomad Gloss Berry – bicikl
Specs
Frame: 100% Chromoly, Disc, with Rack and Fender mounts (M/L 700c Compatible)
Fork: 100% Chromoly. One-piece Machined Steerer Tube
Handlebar: FSA NS Adventure (S=400mm, M/L=420mm, XL=440mm)
Stem: 6061-T6 Forged Aluminum (60mm S, 70mm M, 80mm L and XL)
Headset: FSA, Sealed Integrated, 45º/45º
Brake Lever: SRAM Apex 1
Brake: Avid BB7 Road
Grips: Fairdale Cork handlebar tape
Saddle: Fairdale Race Seat
Seat Post: Micro Adjust, 27.2mm
Seat Clamp: Fairdale, 30mm
Cranks: SRAM Apex 1 (S=165mm, M & L=172.5mm, XL=175mm)
Chainwheel: 42t, Narrow-Wide
BB Parts: Neco BB-501
Pedals: Odyssey Twisted PC
Front Hub: Sealed Bearings, 32-H, Alum. Shell, Disc Brake Mount, w/Allen Skewer Axle
Rear Hub: Sealed Bearings, 32-H, Alum. Shell, Disc Brake Mount, w/Allen Skewer Axle
Rims (XS/S): 650b, 32-Hole, Aluminum, Double Wall, Tubeless Compatible
Rims (M/L/XL): 700c, 32-Hole, Aluminum Double Wall, Tubeless Compatible
Tires (XS/S): 27.5” x 1.65”, Maxxis Overdrive (Blackwall)
Tires (M/L/XL): 700c x 40c, Maxxis Rambler (Tanwall)
Chain: KMC X11
Cassette: SRAM PG-1130, 11-42T, 11-Speed
R. Shift Lever: SRAM Apex 1, 11-Speed (Rear)
R. Derailleur: SRAM Apex 1, Long Cage, 11-Speed
Shift Cable: Fairdale with Jagwire inline adjuster
Geometry
| Size | XS (50cm) | S (52cm) | M (55cm) | L (58cm) | XL (60cm) |
| Top Tube (Effective) | 505mm | 523mm | 545mm | 579mm | 602cm |
| Top Tube (Actual) | 487mm | 505mm | 532mm | 559mm | 585mm |
| Seat Tube (BB Center to TT Top) | 401mm | 454mm | 485mm | 533mm | 576mm |
| Seat Tube (BB Center to TT Center) |
360mm | 414mm | 445mm | 493mm | 536mm |
| Seat Tube Angle | 74.5° | 74° | 73° | 73° | 73° |
| Head Tube Length | 115mm | 120mm | 122mm | 146mm | 167mm |
| Head Tube Angle | 70° | 70° | 71° | 71.5° | 71.5° |
| Chain Stay Length | 415mm | 415mm | 440mm | 440mm | 440mm |
| Wheelbase | 992mm | 1005mm | 1037mm | 1058mm | 1081mm |
| Standover | 717mm | 745mm | 765mm | 800mm | 830mm |
| Stack | 512mm | 517mm | 565mm | 589mm | 609mm |
| Reach | 361mm | 373mm | 380mm | 398mm | 414mm |
| Fork Length | 390mm | 390mm | 416mm | 416mm | 416mm |
| Fork Offset | 50mm | 50mm | 50mm | 50mm | 50mm |
| BB Drop | 54mm | 54mm | 72mm | 72mm | 72mm |
| Dropout Spacing | 135mm | 135mm | 135mm | 135mm | 135mm |
| BB Type | English 68 | English 68 | English 68 | English 68 | English 68 |
| Seat Post | 27.2mm | 27.2mm | 27.2mm | 27.2mm | 272.mm |
| Seat Clamp | 30mm | 30mm | 30mm | 30mm | 30mm |
| Approx. Max Tire Width 27.5″/650b | 47mm | 47mm | 54mm | 54mm | 54mm |
| Approx. Max Tire Width 29″/700c | N/A | N/A | 53mm | 53mm | 53mm |
| Wheel Size | 27.5″ | 27.5″ | 700c | 700c | 700c |
*Specs subject to change without notice.
